Style 5

Screw On 80° Diamond Indexable Cartridges

Style 5

Straight Mount

style 5 twlh

Show Microbore Cartridge Data

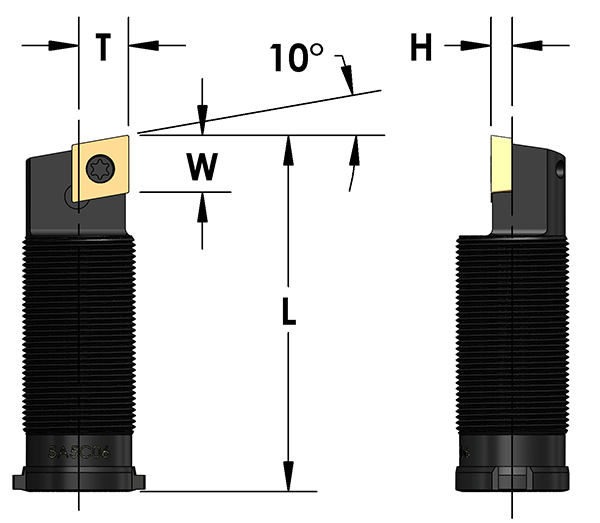

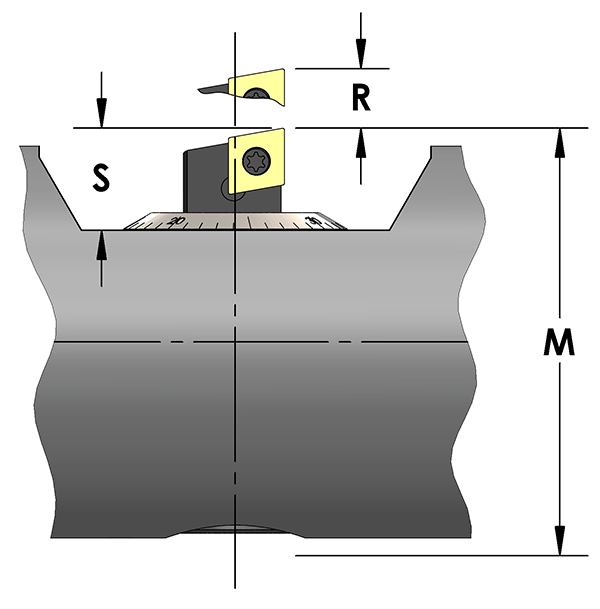

Cartridge Geometry

S - Dial Position for Maximum Rigidity and Adjustment
M - Minimum Bore
R - Range
L - Length
T - Tool Point Offset
W - Effective Face
H - Height Above Centerline style 5 rsm

Click to Show All Style 5 Cartridges in Table Form

CARTRIDGE	M	R	S	L	T	W	H	DIAL GRADS	SCREW	WRENCH
3A5C06	1.22	.31	.43	1.00	.156	.25	.062	40	SP1910	T7
3B5C06	1.06	.16	.43	.84	.156	.25	.062
5A5C06	1.91	.53	.63	1.56	.218	.25	.094
5B5C06	1.66	.28	.63	1.31	.218	.25	.094
7A5C09	2.63	.66	1.00	2.19	.25	.37	.125	80	SP1911	T15
7B5C09	2.38	.41	1.00	1.94	.25	.37	.125		SP1911
10A5C12	3.50	1.13	1.25	3.00	.375	.50	.187		SP1999
10B5C12	3.00	.63	1.25	2.50	.375	.50	.187		SP1999
