Screw On 80° Diamond Indexable Cartridges

Style 2

Angular Mount

style2 3 5

Show Microbore Cartridge Data

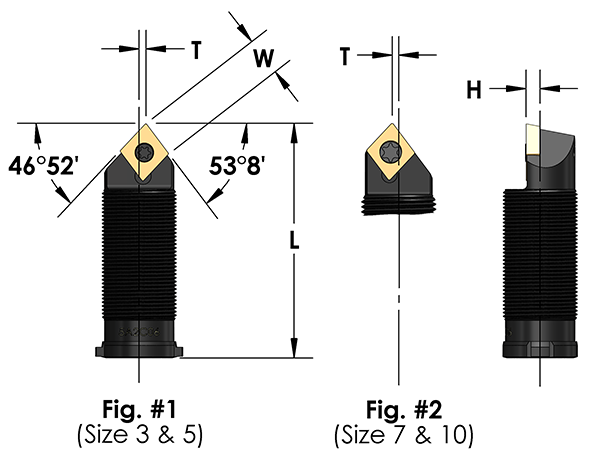

Cartridge Geometry

S - Dial Position for Maximum Rigidity and Adjustment
M - Minimum Bore
R - Range
L - Length
T - Tool Point Offset (To Sharp Corner of Bore)
W - Effective Face
H - Height Above Centerline

style2 rsm

Click To Show All Style 2 Cartridges in Table Form

CARTRIDGE	M	R	S	L	T	W	H	DIAL GRADS	SCREW	WRENCH
3A2C06	1.03	.25	.43	1.00	.010	.25	.062	40	SP1910	T7
3B2C06	.91	.13	.43	.84	.010	.25	.062
5A2C06	1.62	.41	.63	1.56	.047	.25	.094
5B2C06	1.41	.22	.63	1.31	.047	.25	.094
7A2C09	2.31	.50	1.00	2.19	.063	.37	.125	80	SP1911	T15
7B2C09	2.08	.31	1.00	1.94	.063	.37	.125		SP1911
10A2C12	3.08	.87	1.25	3.00	.031	.37	.187		SP1999
10B2C12	2.69	.50	1.25	2.50	.031	.37	.187		SP1999
