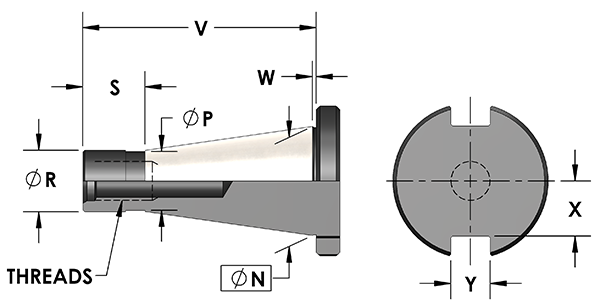

| Shank Size | N | P | R | S | V | W | X | Y | Threads |
| 30 | 1.25 |
.64 |
.635 | .81 | 2.75 | .06 | .63 | .635 | 1/2-13 |
| 40 | 1.75 | .94 | .987 | 1.00 | 3.75 | .06 | .88 | .365 | 5/8-11 |
| 50 | 2.75 | 1.50 | 1.549 | 1.00 | 5.12 | .12 | 1.38 | 1.013 | 1"-8 |
1270 Agricola Drive, Saginaw, Michigan 48604 USA
989.752.3077 |
Toll Free: 877.308.3077
sales@universaldevlieg.com
1270 Agricola Drive, Saginaw, Michigan 48604 USA
NOTICE: We are currently migrating our old webstore to a new platform. We value your patience during this process. If you need to place an order, feel free to call us on our toll free number, or email us at sales@universaldevlieg.com.
DeVlieg Microbore Boring products are not on the Webstore, for complete product offerings for both DeVlieg Microbore & Universal Engineering products, please refer to our on-line catalog . For items not on the webstore, please call us on our toll free number, or email us at sales@universaldevlieg.com.
| Shank Size | N | P | R | S | V | W | X | Y | Threads |
| 30 | 1.25 |
.64 |
.635 | .81 | 2.75 | .06 | .63 | .635 | 1/2-13 |
| 40 | 1.75 | .94 | .987 | 1.00 | 3.75 | .06 | .88 | .365 | 5/8-11 |
| 50 | 2.75 | 1.50 | 1.549 | 1.00 | 5.12 | .12 | 1.38 | 1.013 | 1"-8 |
